To purchase parts for the AVAC Q-10 Vacuum (Main Assembly):

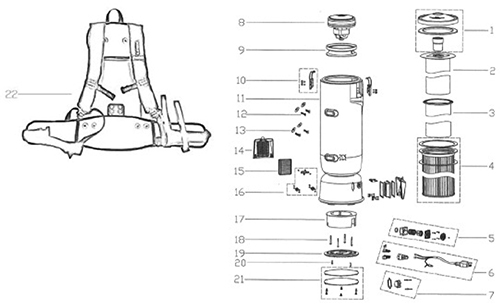

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | AVQ1-1059Z | 1 | Top Lid Assembly | 12 | AVQ12-0010S | 4 | Screw | |
| 2 | AVQ2-0039 | 1 | Disposable Dust Bag | 13 | AVQ13-0010W | 4 | Washer | |
| 3 | AVQ3-0005 | 1 | Cloth Bag SMS | 14 | AVQ14-1063 | 1 | HEPA Exhaust Cover | |
| 4 | AVQ4-0011Z | 1 | HEPA Filter | 15 | AVQ15-0047 | 2 | HEPA Exhaust | |
| 5 | AVQ5-0686Z | 1 | Exhaust Valve Assembly | 16 | AVQ16-1061Z | 1 | Fastener Assembly | |
| 6 | AVQ6-0137Z | 1 | Conn Cord Assembly | 17 | AVQ17-0709 | 1 | Motor Plate | |
| 7 | AVQ7-0029Z | 1 | Switch Assembly | 18 | AVQ18-0111 | 4 | Screw | |
| 8 | AVQ8-0041 | 1 | Motor | 19 | AVQ19-0671 | 1 | Plastic Guard | |
| 9 | AVQ9-0060 | 1 | Gasket for Mounting Plate | 20 | AVQ20-0101 | 2 | Self Tapping Screw | |
| 10 | AVQ10-0006Z | 1 | Clamp | 21 | AVQ21-1064Z | 1 | Sealing Board | |
| 11 | AVQ11-0022 | 1 | Tank 10 Quart | 22 | AVQ22-0005 | 1 | Harness | |
